GH350 Automatic hot stamping machine for glass bottles

所屬類別： > 產品中心 > 燙金機

型號：GH350

在線詢價

Picture for reference only

Application:

The machine GH350 is designed for hot stamping on all shape of glass bottles and cups at high production speeds. It is suitable for all shape of glass containers stamping with  primer base. And it is capable of stamping glass containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.

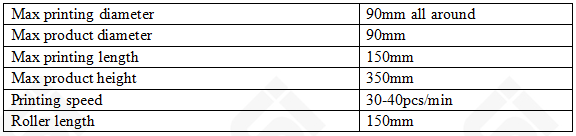

Tech-data:

Description:

Automatic loading with servo driven robot. Bottles standing up on the conveyor

Auto hot stamping with pneumatic support

Servo driven stamping head with pressure on each jigs individual adjustable

All jigs driven by individual servo motor

Motor driven roller

Foil press system

Indexer driven horizontal rotary table system, 4 stations

High accuracy indexer from Japan

Auto unloading with servo driven robot, bottles standing up on conveyor after unloading

Well built machine house with CE standard safety design

PLC control with touch screen display
